Shellbags Forensic Analysis 2025

Want to learn the secrets of Shellbags? Stick around. DFIR expert Chris Ray lays out everything you want to know, from how they work to how to do DFIR analysis on them.

Now, let’s explore the mysteries of the shells contained in the bag.

Jump to…
What Are Shellbags?
Where Are Shellbags Stored?
Shellbags in Digital Forensics
How Shellbags Work
Investigating an Intrusion?
Shellbag Anti-Forensics
Analyzing Shellbags for Forensic Investigations
Challenges of Shellbag Analysis

What Are Shellbags?

If you have ever noticed Windows remembered where you last left the Explorer window or the custom columns you’ve added for a specific folder view, then you have had a run-in with Shellbag data.

Shellbag Definition: “Shellbags” refers to a group of registry keys and key data Windows maintains to remember user viewing preferences in Windows Explorer and Windows Open/Save dialogs like:

  • Window location/size
  • Columns to display
  • Column sorting
  • Icon size

Examples of Shellbags at Work

Viewing Preferences in Explorer Before Changes

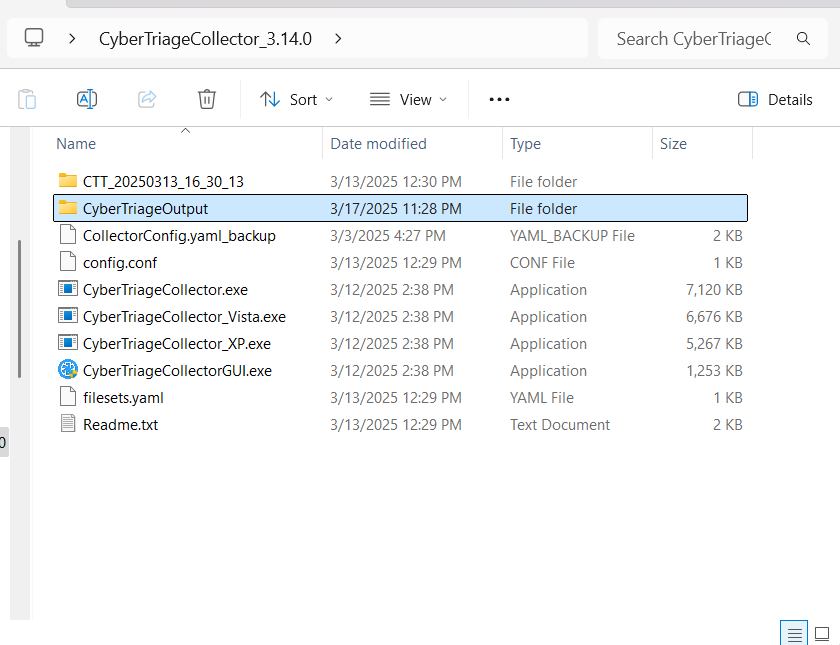

Explorer before.
Current preferences for viewing the “CyberTriageCollector_3.14.0” folder before removing “Type” and “Size” columns and sorting by “Date modified.”

Viewing Preferences in Explorer After Changes

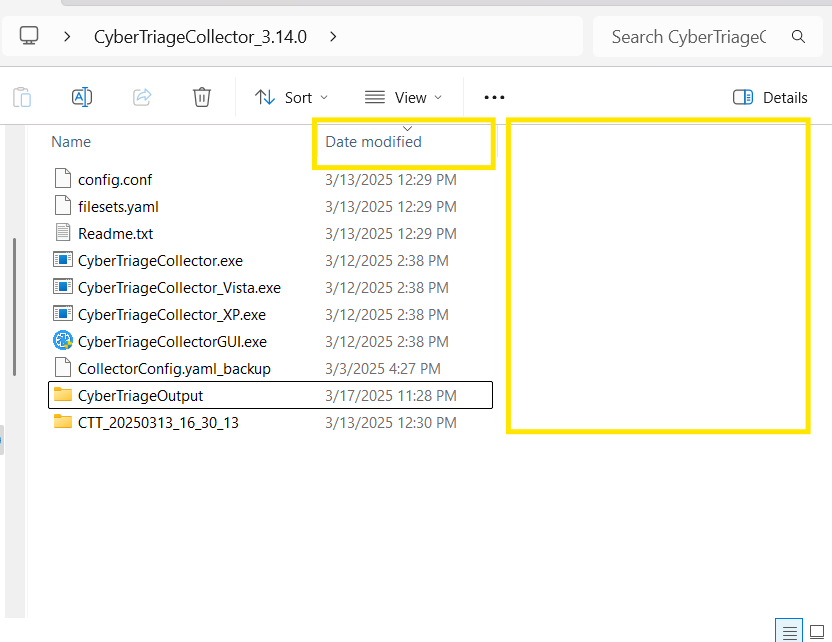

Explorer after.
Updated user preferences after removing the columns and sorting by “Date modified.” Closing and reopening Windows Explorer will show that these settings have been retained and are specific to the “CyberTriageCollector_3.14.0” folder.

Viewing Preferences Are Different in Open/Save

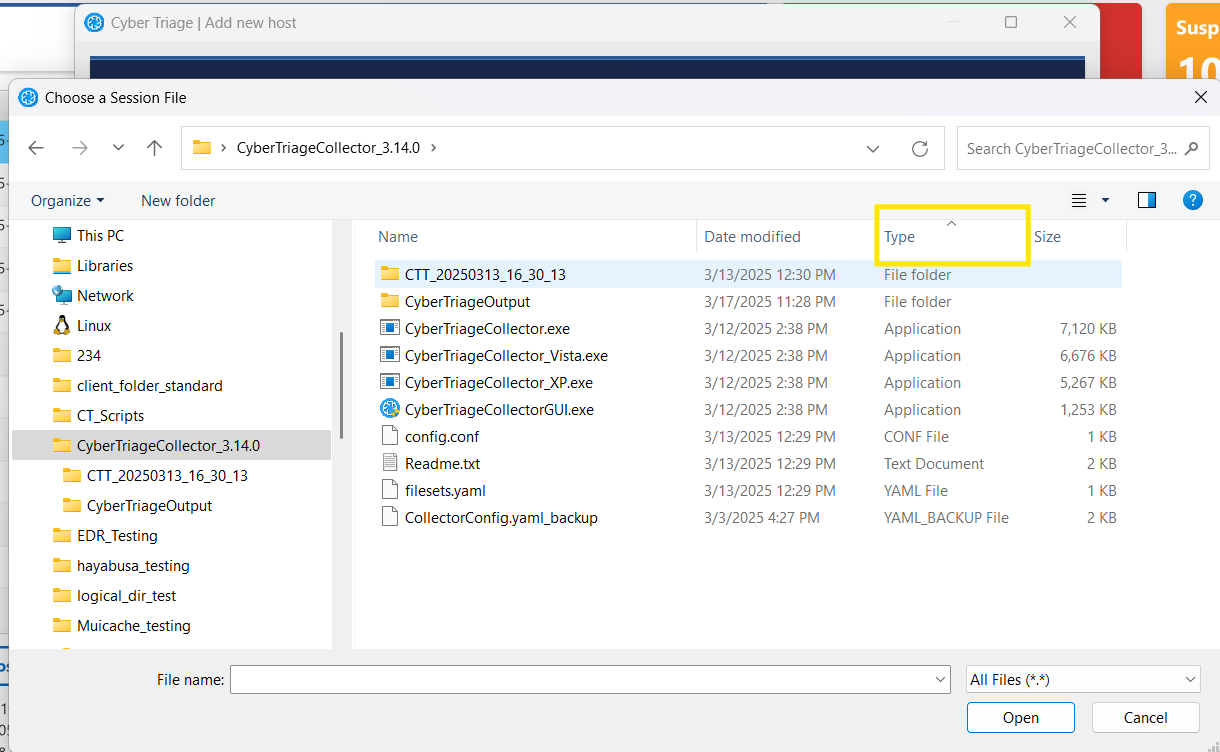

Comdlg after.
An example illustrating viewing preferences are different when using an Open/Save dialog instead of Explorer. Note the user-preferred sorting is on the “Type” column and additional columns are now present.

Shellbags are also a key forensic artifact for answering the question:

What folders have users interacted with on the system?

This is largely because Shellbag registry keys keep track of every folder a user has visited, even after a folder has been deleted.

Where Are Shellbags Stored?

Windows Shellbags are stored in various locations within the registry depending upon the Windows version and the type of data being logged.

The keys of interest for investigators are:

  • Bags
  • BagMRU

Those keys can be found under the following top-level Shellbag keys:

Windows Vista & Later (Including Windows 7, 8, 10, and 11)

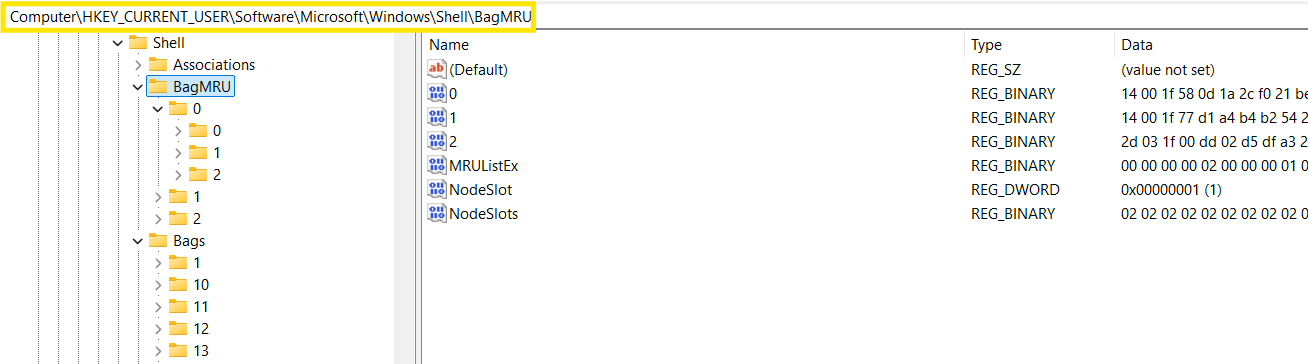

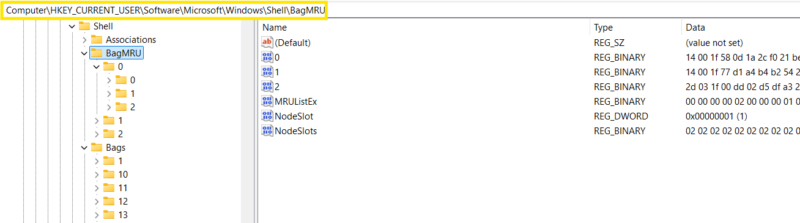

Vista NTUSER Shell.

HKEY_CURRENT_USER\Software\Microsoft\Windows\Shell

(Live analysis)

NTUSER.DAT\Software\Microsoft\Windows\Shell

(Disk analysis)

Stores data for folders accessed from the network (UNC path).

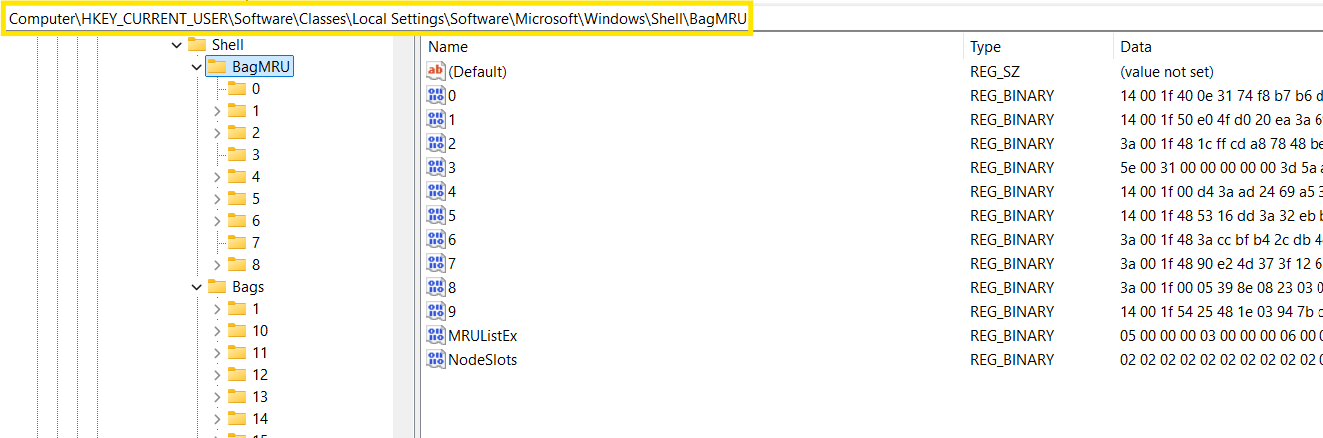

Vista USRCLASS Shell.

HKEY_CURRENT_USER\Software\Classes\Local Settings\Software\Microsoft\Windows\Shell

(Live analysis)

UsrClass.DAT\Local Settings\Software\Microsoft\Windows\Shell

(Disk analysis)

Stores data for folders accessed locally and on removable drives.
MSIX (Windows App) specific registry hives

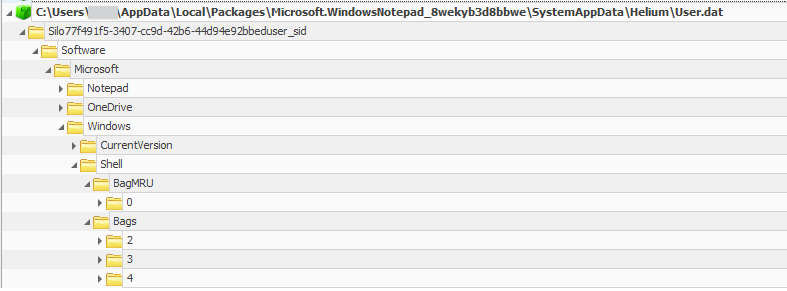

Appx user shell ex.

C:\Users\USER\AppData\Local\Packages\APP_PACKAGE_NAME\SystemAppData\Helium\User.dat\ (Disk analysis)

Stores data for folders accessed from the network (UNC path) from a specific app.

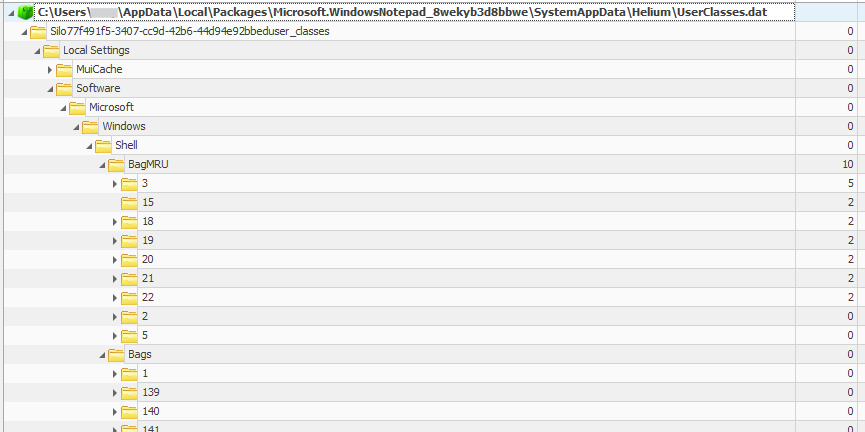

Appx userclass Shell ex.

C:\Users\USER\AppData\Local\Packages\APP_PACKAGE_NAME\SystemAppData\Helium\UserClasses.dat\ (Disk analysis)

Stores data for folders accessed locally and on removable drives from a specific app.
Windows XP

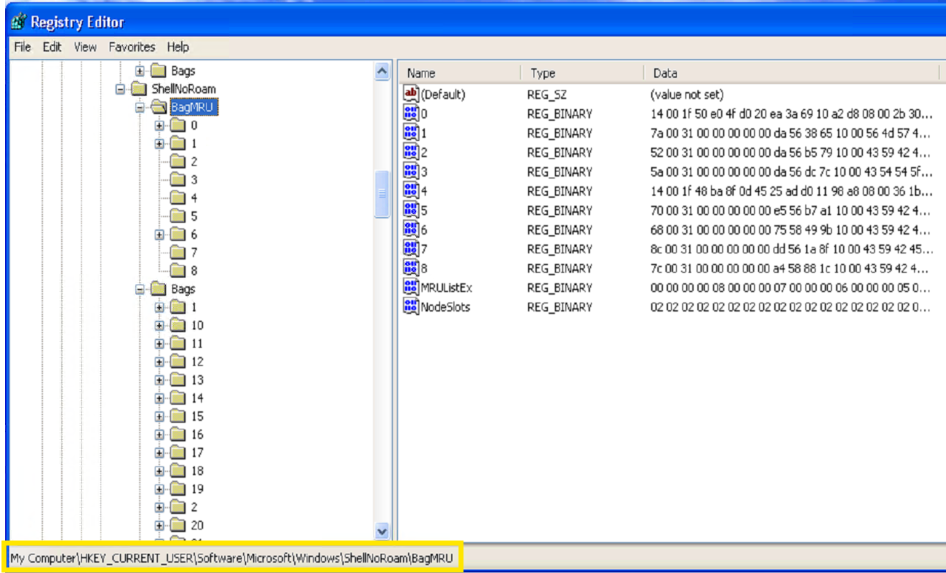

XP no roaming.

HKEY_CURRENT_USER\Software\Microsoft\Windows\ShellNoRoam

(Live analysis)

NTUSER.DAT\Software\Microsoft\Windows\ShellNoRoam

(Disk analysis)

Stores data for folders accessed locally.

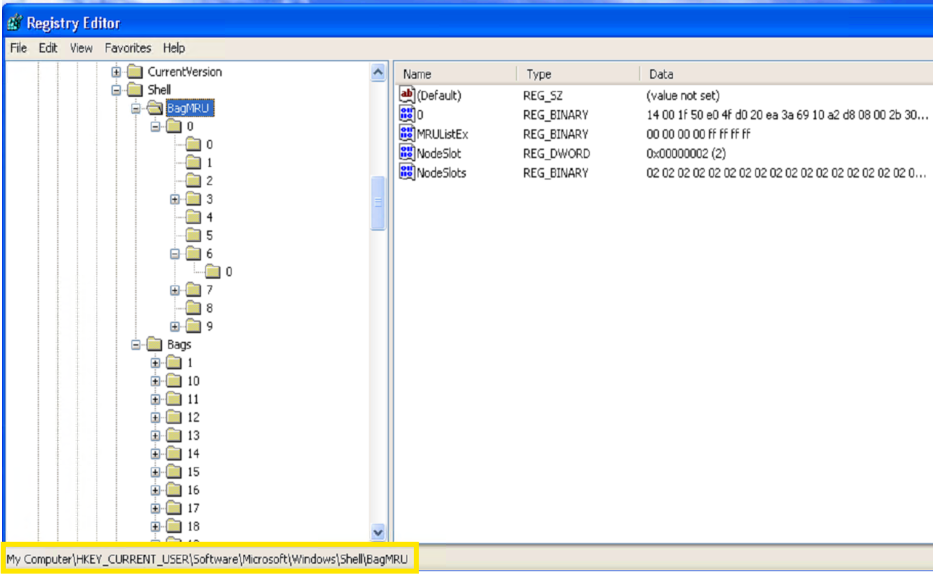

XP shell.

HKEY_CURRENT_USER\Software\Microsoft\Windows\Shell

(Live analysis)

NTUSER.DAT\Software\Microsoft\Windows\Shell

(Disk analysis)

Stores data for folders accessed from the network (UNC path).

Shellbags in Digital Forensics

Shellbags can contain a wealth of information on what folders a user has accessed. However, because the exact details for how it works are not publicly available it can be difficult to fully understand the data. Investigators should use other artifacts to verify findings and test specific scenarios out to ensure they understand the data and how it got there.

That said, here is the key info from Shellbags:

Info Notes
Full Path to Folder Even for deleted folders.
If Folder Was Accessed. There are scenarios we will discuss later where an entry can show up but doesn’t indicate the user accessed folder content.
User Who Accessed Folder Based on the registry hive.
Modified, Accessed, and Created Timestamps for Folder Accessed This is only recorded the first time the folder is put into Shellbags.
First and Last Time User Accessed Folder Based on the last write time of a registry key and can only be used in certain situations to infer the first and last access time for a folder.
User Preferences Applied to Folder This can help prove that a user had intent to interact with a given folder.

How Shellbags Work

High-level Summary

Shellbags are generated by Windows when browsing to folders or folder-like files (archive formats like .zip supported by explorer) in Windows Explorer or Windows Open/Save dialogs.

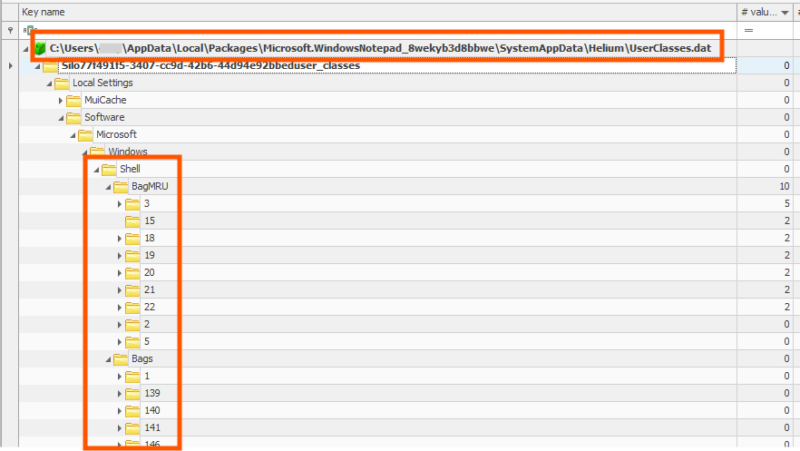

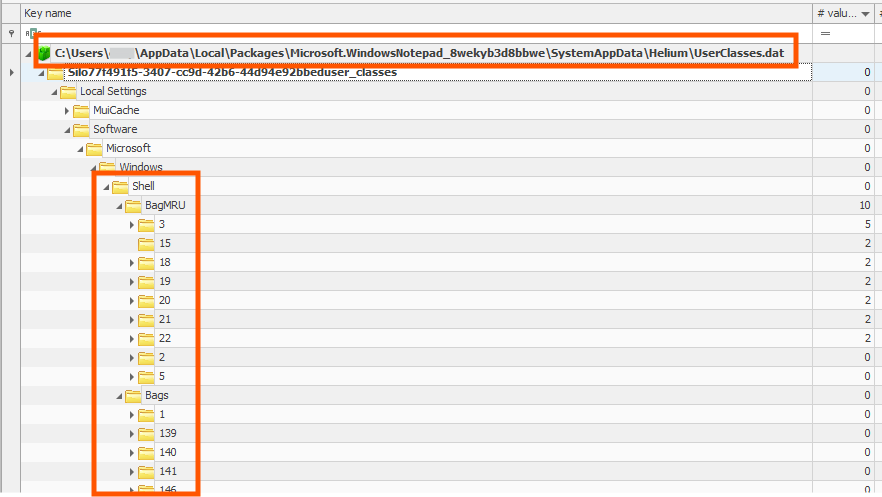

AppX shellbag data.

Note:
If the app that opens the Windows Open/Save dialog is a Windows App then shellbag data will not be recorded in the normal user hives but the app-specific registry hive.

Not every entry in Shellbags directly indicates a user has accessed the folder.

Example:
Shellbags will record each folder up to the folder opened even if the user never directly browsed those folders. Folders not directly attempted to visit will not have a “Nodeslot”

Example:
Shellbags will record a folder access attempt (user does not have permission to access folder). The corresponding Nodeslot under “Bags” key will not have any view preferences, which are always populated when a folder has successfully viewed.

More Detailed Breakdown

We will not dive into the technical details of how to parse out data from these keys as it is not trivial and has been documented in numerous other writeups. Instead, we will provide fundamentals on what the core key and values mean so you can understand how the components of the artifact operate.

There are two keys related to each of the upper-level ShellBag keys we previously mentioned.

They are:

  • BagMRU
  • Bags

Let’s look at each of these in turn.

BagMRU
The “BagMRU” registry key is the main key that holds forensic value. It contains the full path to the folder accessed as well as all of the timestamp information.

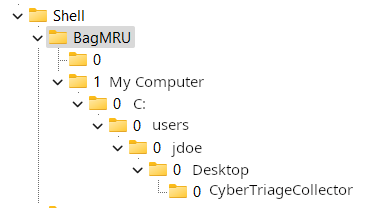

Shell folders example.
User browsed My Computer → User → Jdoe → Desktop → CyberTriageCollector from Explorer.

Each of the numbered keys/subkeys under BagMRU can contain the following values:

Number (0,1,2,…) Contains all of the forensic data about a folder stored as a shell item.
MRUListEx MRU list showing the order in which folders have been accessed in a given folder.
Nodeslot Reference to the key under BagsMRU that stores the view preferences.

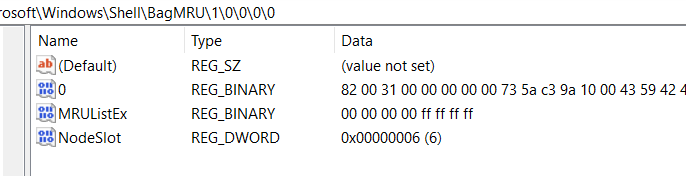

Shell BagMRU data.
Shows data for “Desktop” folder. 0 is the shell item data for the folders accessed from desktop. In this case “CyberTriageCollector”. MRUListEx shows the most recently accessed folder is 0 while ff ff ff ff indicates the end of the list. NodeSlot is 6 meaning the Bags\6 entry will contain the preference data for “Desktop.”
Bags
The “Bags” registry key contains the viewing preferences for a particular folder.

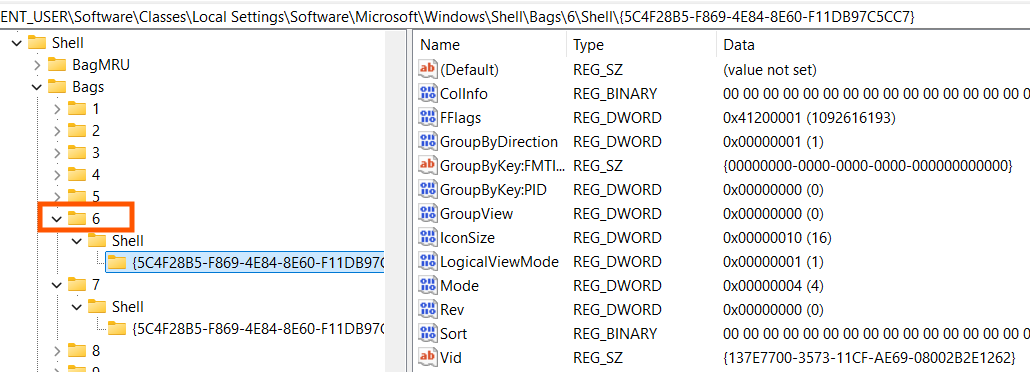

Shell bags example.
Example of “Bags” subkey 6 preference data for “Desktop” seen in our previous screenshot.

Each of the numbered keys under Bags can contain the following data:

  • Subkey name (number) correspond to NodeSlot value from BagMRU subkeys.
  • Keys under number keys represent where the view preferences should be applied.
    • We have seen up to two values. A value of “Shell” indicates the preferences will apply to explorer while a value of  “comdlg” indicates preferences will apply to the Windows open/save dialog.
  • Subkey under shell or comdlg will contain the preferences.
    • This is required to show that a user actually viewed the folder and its contents. If this is missing we cannot say that the user viewed the folder.

Investigating an Intrusion?

If you’re currently investigating an intrusion, our automated DFIR tool, Cyber Triage, could help you get to the bottom of things much faster.

Try it free today for 7 days!

Shellbag Anti-Forensics

Now that we have a basic understanding of the importance of shellbags and how it operates we need to understand where Shellbags fall short and how they can be evaded.

How to Prevent Logging

There is no way to natively turn off the Shellbag feature, however, it is still possible to prevent the logging of Shellbag data by adjusting the permissions on the Shellbag registry keys. This is a similar approach that we discussed in our MUICache blog.

# Define the registry key path

$registryKeyPath = "HKCU:\Software\Classes\Local Settings\Software\Microsoft\Windows\Shell\BagMRU"

# Get the current ACL

$acl = Get-Acl -Path $registryKeyPath

# Define the new access rule (deny write access for everyone)

$denyWrite = New-Object System.Security.AccessControl.RegistryAccessRule(

    "Everyone",

    [System.Security.AccessControl.RegistryRights]::SetValue,

    [System.Security.AccessControl.AccessControlType]::Deny

)

# Add the new access rule to the ACL

$acl.SetAccessRule($denyWrite)

# Apply the updated ACL to the registry key

Set-Acl -Path $registryKeyPath -AclObject $acl

This PowerShell script adds a deny-all ACL to the BagMRU key.

This prevents Explorer from adding any new Shellbag data. This is limited to the current user and needs to be applied to the other shellbag locations to be thorough.

How to Evade Shellbags

Aside from preventing the Shellbags feature from working, attackers can evade it by exploring folders without the help of Windows Explorer or the Open/Save dialogs.

There are many ways to do this, but here are two:

  1. Use PowerShell and command prompt to navigate and search folders.
  2. Browsing the file system using a GUI is through a web browser.

Let’s explain the second strategy.

If you enter “file://c:” into your browser, you’ll be able to browse your file system with a GUI interface:*

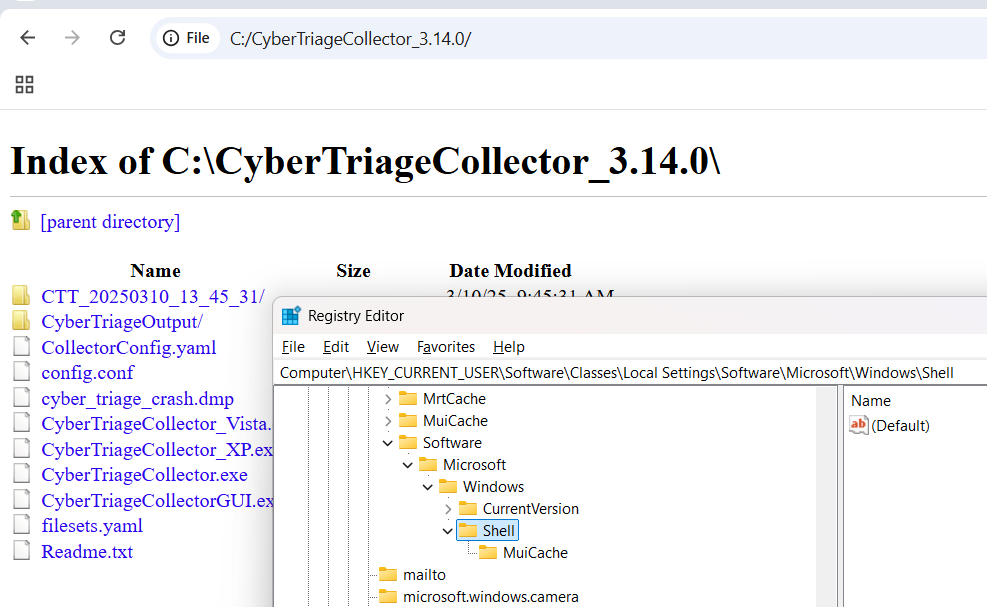

Chrome file browse.
Example screenshot showing how browsing the file system through Chrome will prevent shell bag activity from being recorded. No shellbag keys appear after deleting them and browsing several folders from Chrome.
Note:
* Better yet you can do this from a private browsing window to prevent other browser artifacts from recording the files and folders accessed.

Analyzing Shellbags for Forensic Investigations

Analyzing Shellbags is not easily done without special parsing due to its complex structure. As a result we must rely on tools to parse this data in a meaningful manner.

Many forensic tools can parse these artifacts, but two solid Shellbag analyzers are:

(Both were created by Eric Zimmerman).

Shell Bag Explorer is a GUI tool while SBECMD is command line driven. Both support parsing folders of registry hives or the current users live registry hive if running as admin.

For the purpose of this we will show Shell Bag Explorer to show how it makes reviewing shell bags much easier.

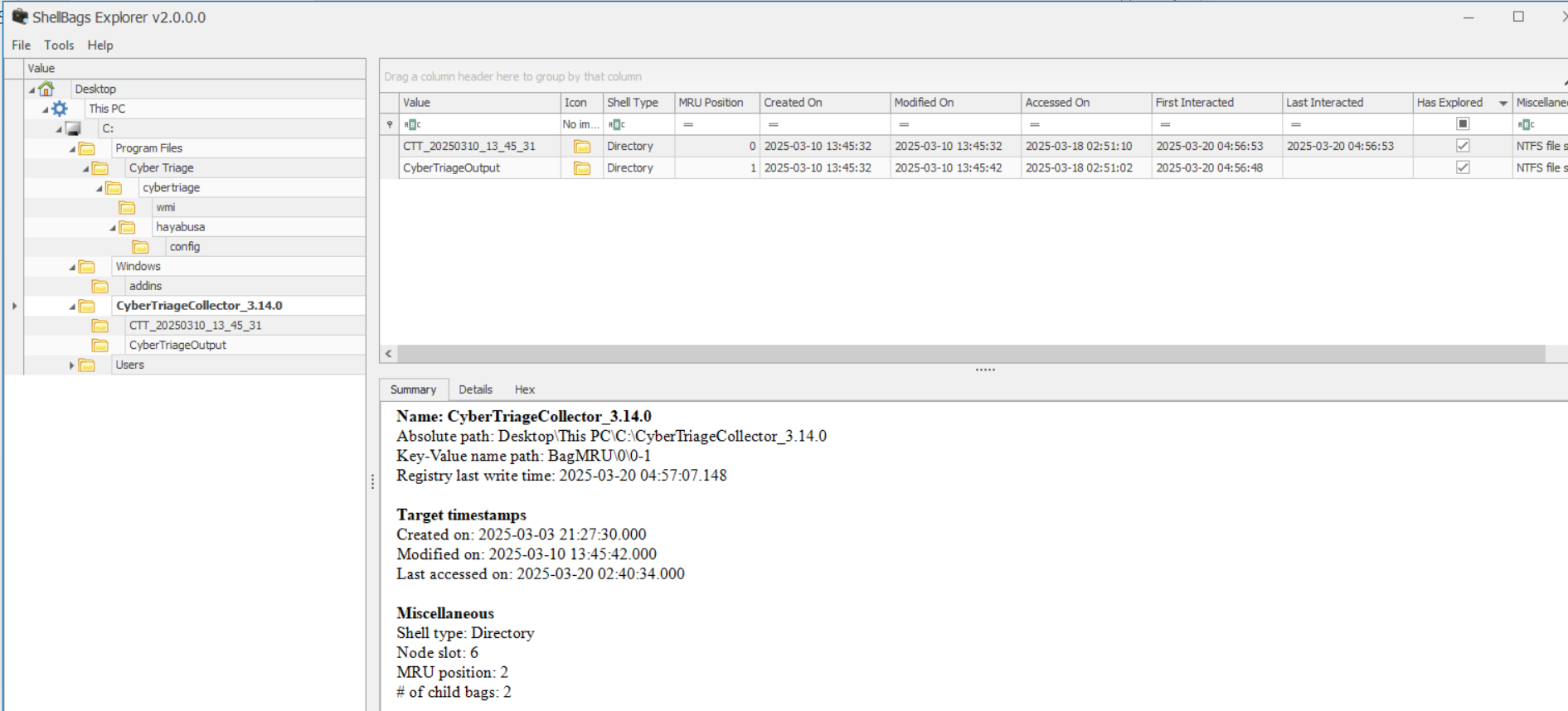

Shellbag Explorer.

Key Features

  • Reconstructs the file system view via available Shellbag data.
  • Include detailed information for each of the shell items (details tab).
  • Provides high-level summary for each folder:
    • Folder name
    • First/last interacted times if available
    • Created/Modified/Accessed folder timestamps
    • If the folder was actually visited by the user

Challenges of Shellbag Analysis

  • Behavior changes between Operating system.
  • Only records folders accessed and not individual files.
  • Shellbag data is not easy to review without special parsing.
  • Shellbag data has its limitations as it only records data from Windows explorer and the open/save dialog.

To get a better understanding of how Shellbags on older systems or a more technical review of the Shellbag data, review these resources:
